RADIANCE C&E PVT. LTD

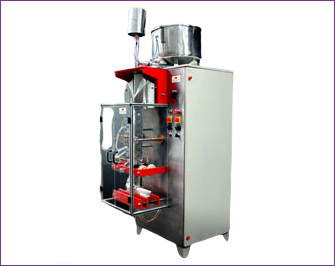

Water Pouch Packing Machine

Our water pouch packing machine is well suited to pack products namely water, artificial fruit juice, flavored milk, lassi in LDPE packing material.

We are renowned and one of the top leading water pouch packing machine supplier’s and manufacturers of fully automatic water packing machine designed for packing liquid in LDPE film, commonly known as milk packing machine, water packing machine, fruit juice packing machine, frooti packaging machine, fruit juice packaging machine, fruit juice filling and packaging machine, lassi pouch packing machine, bottle shaped pouch packing machine, juice filling and sealing machine, juice pouch packing machine, juice packaging machine, pouch juice packaging machine, pani pouch packing machine, water packing machine price, mineral water pouch, mineral water pouch packing machine.

Specification

Construction of Water
Packing Machine
In economy model complete body and covers in mild steel powder coated
Only front of machine and all contact parts will be made in stainless steel.
Water Packet Packing
Machine output
2500 pouches per hour for 200 ml to 500 ml packing.
Water Pouch Machine
Filling Range
200 ml to 500 ml adjustable.
Filling system of Water
Packing Machine
Gravity fill electromagnetic filling system with timer.
Packing Material
Virgin co-extruded multilayer LDPE film, food grade.
Open width of roll
325 mm
Pouch width
150 mm
Film core ID
76 mm.
Film roll weight
Maximum 20 kg
Machine control
Simple electrical panel microprocessor controlled circuits.
Sealing style
Standard vertical overlap.
Main drive
Mechanical machine all sealing, pulling and filling system will be gear driven
Power supply
230 VAC, 50 Hz, earthing
Motor Drive
0.5 Hp, Single phase Lawkim/Crompton Greaves Motor with suitable
reduction gear box.
Heaters
Impulse heaters
Machine size
1500 mm X 1000 mm X 2350 mm
Nett Weight of machine
250 Kilogram
Optional arrangements
Complete S S machine.
500 ml to 1000 model.
Online printing.
Pouch counter.
4 KVA voltage stabilizer.
Hygienic dairy pump.
